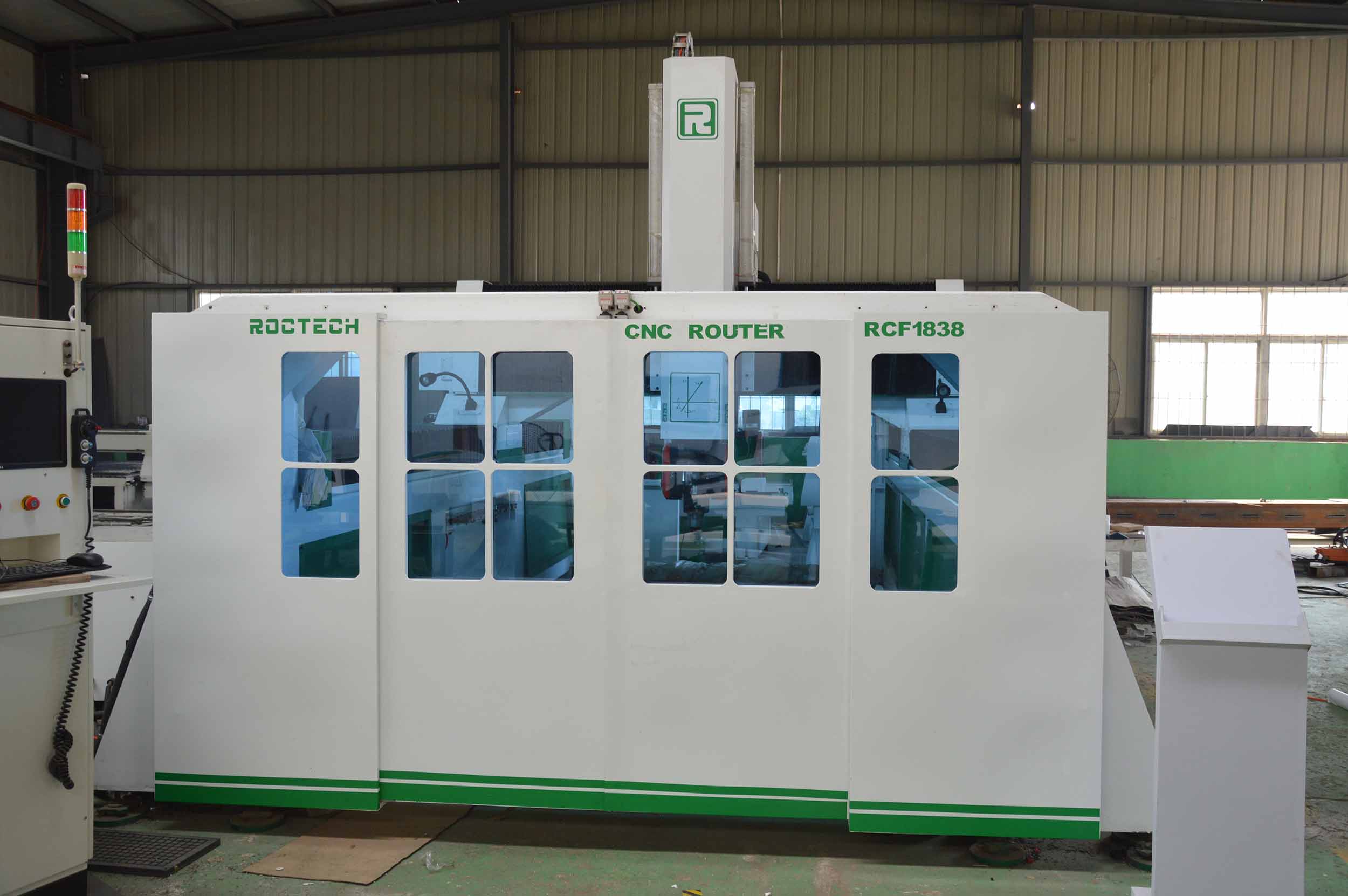

5-Axis CNC Router F1838
5-Axis CNC Router RCF1838 has 3D surface engraving and shape cutting, 5-Axis CNC Router RCF1838 suppliers and manufacturers have complete product details and prices.
Inquiry 5-Axis CNC Router F1838 Price
Hotline0086 531-86085880
- Product Details
OSAI Controller, Taiwan Hiwin Square Rails, Yaskawa Servo Motor and Driver, Italian HSD 2 AXIS HEAD HS655 DOUBLE-COLUMN Spindle.
Z-axis travel can be heightened to 1.2 meters, very suitable for processing large-scale three-dimensional surface.
Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship mold, wooden aviation mold, rail wooden mold and wooden train mold.
Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.
Machinable Materials: Foam,Epoxy Tooling Board(Machinable Resin Board),Plastocene.
Technical Parameter of 5-Axis CNC Router RCF1838
Parmeter | RCF1838 |
X,Y,Z,A,C Traveling | 1800*3800*1200±245degree*±120degree |
Table | Movable Milling Steel（with T-slot） |
Frame | Heavy Steel |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 35000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 10.0KW |
Spindle Speed | 0-24000RPM |
Driving System | Yaskawa Servo Motors |
Working Voltage | AC380v,50/60Hz，3Ph |
Command Language | G Code |
Operating System | OSAI |
Software | CATIA，UG，AlphaCam |
Gross Weight | 8500KG |
Options | Syntec Control |
