Roctech® CNC router machinery

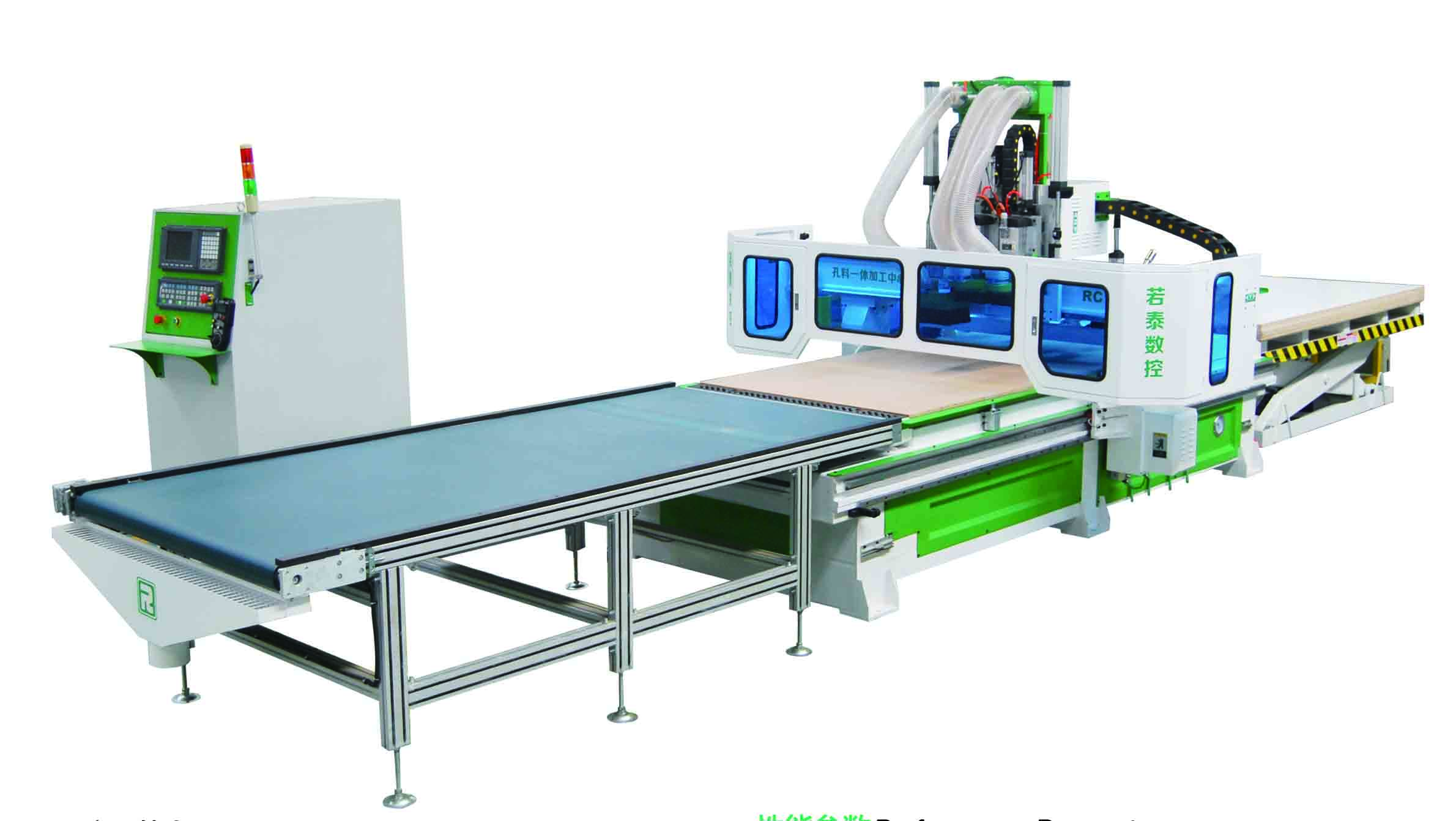

Auto feeding CNC Router 1325K2
Auto feeding CNC Router RC1325K2 can cut, drill, mill in one time, save unloading time and improve machining efficiency, Auto feeding CNC Router RC1325K2 suppliers and manufacturers have complete product details and prices.
Inquiry Auto feeding CNC Router 1325K2 Price
Hotline0086 531-86085880
- Product Details

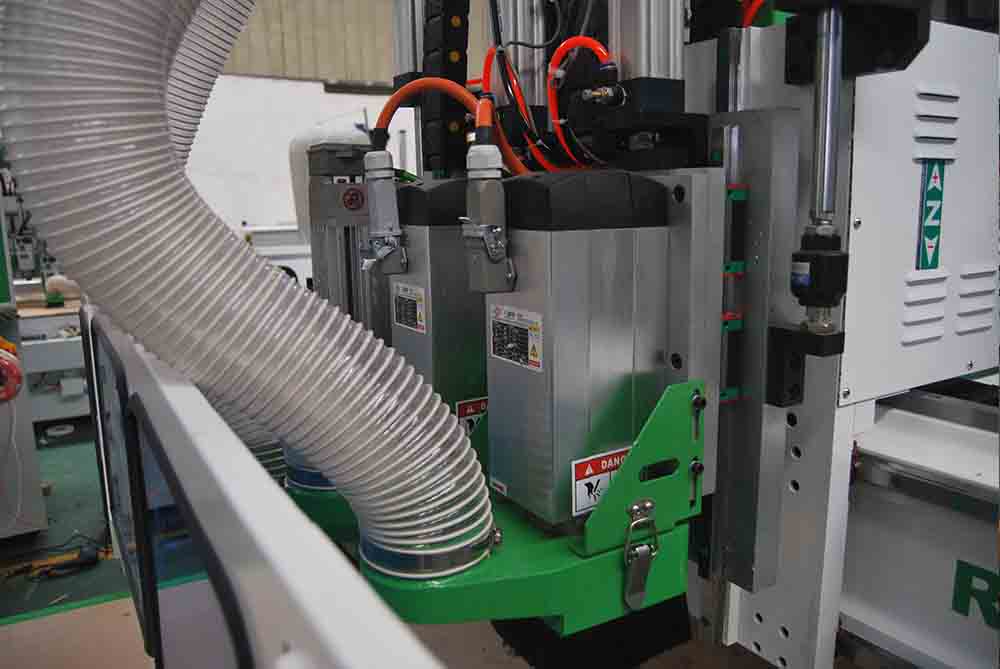

1. Taiwan SYNTEC 6 MD Can-Bus control system, Japan yaskawa servo motor, 9 vertical drilling boring unit imported from Italy HSD. The machine with high speed and stability.
2. Automatic nesting software for Plate Furniture, the computer automatically optimize demolition, from the 3D Rendering to G code, short time, zero error, to improve the utilization of plate.
3. With unique double vacuum table,during the processing, there is no displacement for small panel,smoothly profile.It can cut,drilling and milling one-time completed.
4. Automatic pushing function, it can work together with loading and unloading platform, saving unloading time and improve processing efficiency.
Technical Parameter of Auto feeding CNC Router RC1325K2
Parmeter | RC1325K2 |
X,Y,Z,A,C Traveling | 1220*2440*150mm(4’×8’) |
Table | Double Layer Vacuum Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 55000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 6.0KW/4.5KW(2sets) |
Spindle Speed | 0-18000RPM |
Driving System | Yaskawa Servo Motors |
Working Voltage | AC380v,50/60Hz，3Ph |
Command Language | G Code |
Operating System | Systec Control |
Software | Auto Nestin |
Gross Weight | 3550KG |
Options | HSD Spindle |
