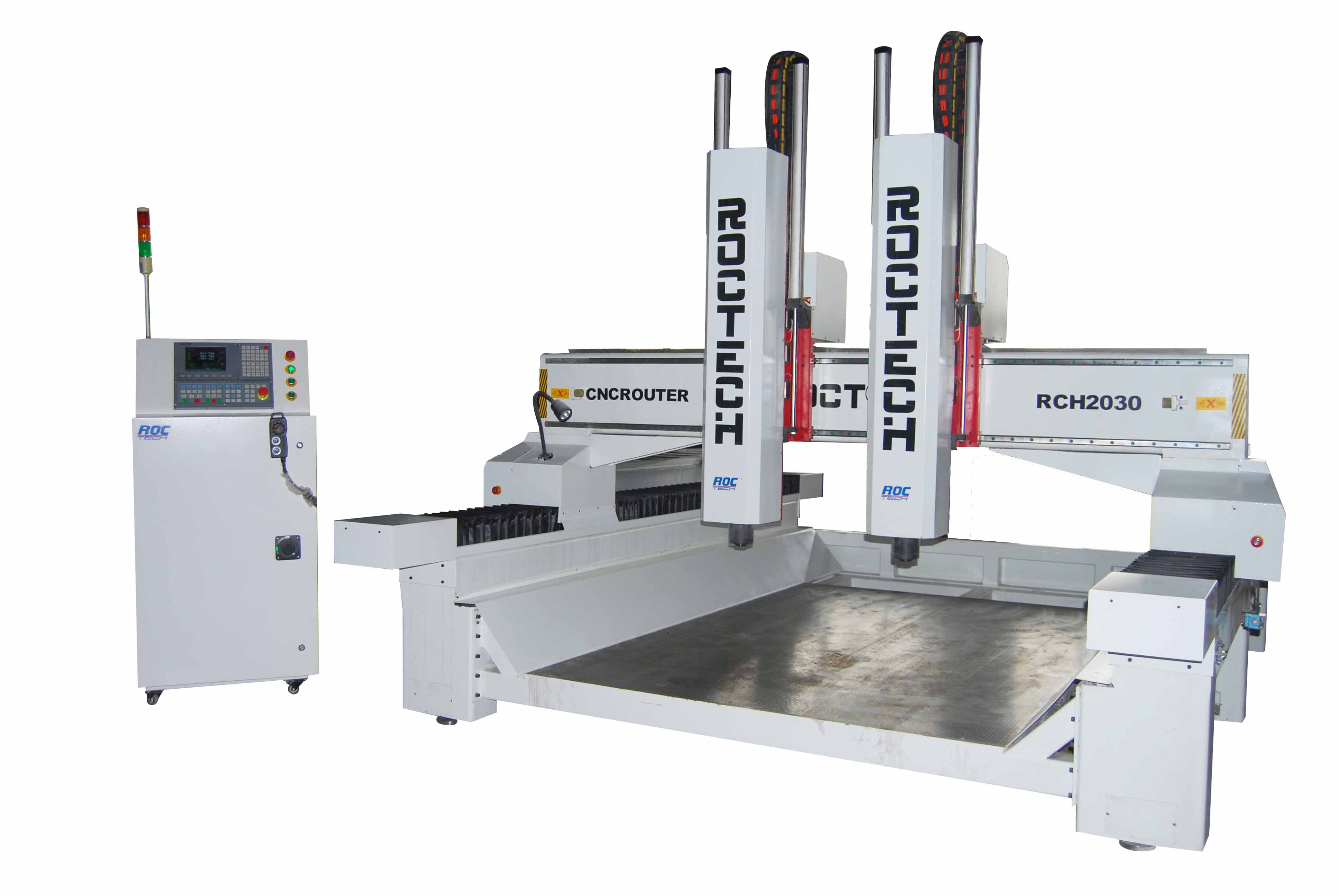

EPS CNC Processing Center RCH2030 with intelligent machining crossover protection to prevent over-machining caused by mechanical collisions, EPS CNC Processing Center RCH2030 suppliers and manufacturers have complete product details and pricing.
Hotline0086 531-86085880
The machine adopts Taiwan Syntec Control System and Japanese Drivers, Taiwan Hiwin Rails, and Italian spindle specilized for molds
Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
Parmeter | RCH2030 |
X,Y,Z,A,C Traveling | 2000*3000*1200mm |
Table | Steel T-slot Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 25000mm/min |
Max Working Speed | 15000mm/min |

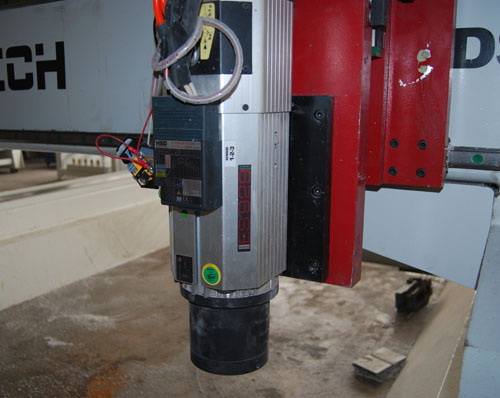

Spindle Power | 7.5KW |
Spindle Speed | 0-11000RPM |
Driving System | Ysakawa Servo Motors |
Working Voltage | AC380v,50/60Hz,3Ph |
Command Language | G Code |
Operating System | Syntec Control |
Software | UG,CATIA,Master Cam,Type 3,Artcam |
Gross Weight | 5800KG |
Options | Fanuc Contorl System |
