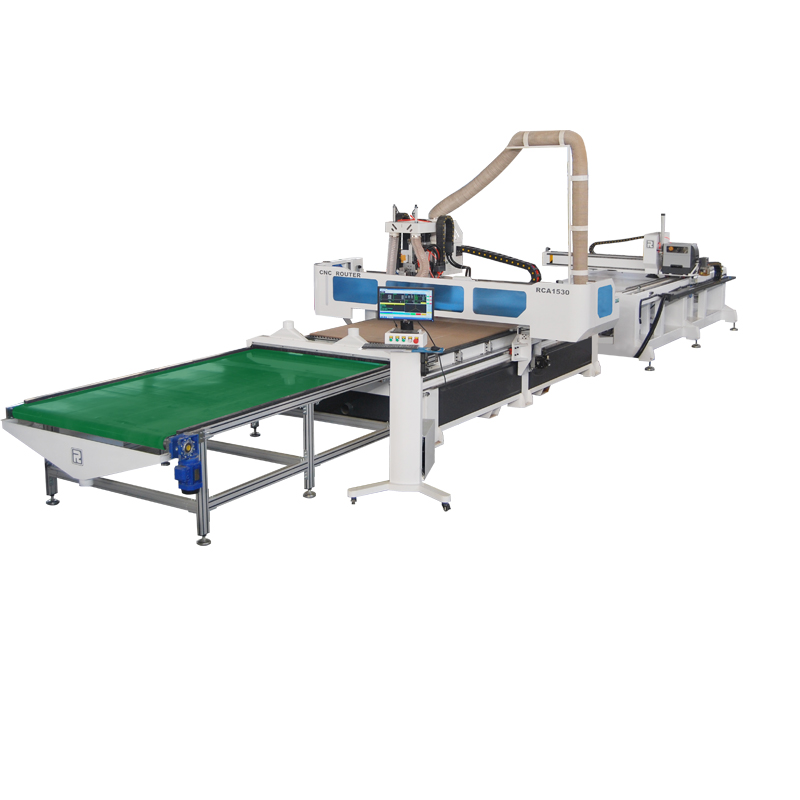

Auto feeding and nesting Center RCA1530 with auto labeling is intelligent, user-friendly, highly automated and can make operators easier to operate, Auto feeding and nesting Center RCA1530 with auto labeling Suppliers and manufacturers have complete product details and prices.
Hotline0086 531-86085880
With intelligentialize, humanization, and high automatic operation, this machine can make the operator much more easier for handling all, any people can learn in couples of hours for operation, can save cost of labors.
Automatically uploading and downloading, Automatically Nesting, optimizing cutting orders, drilling, to maximum the productive.

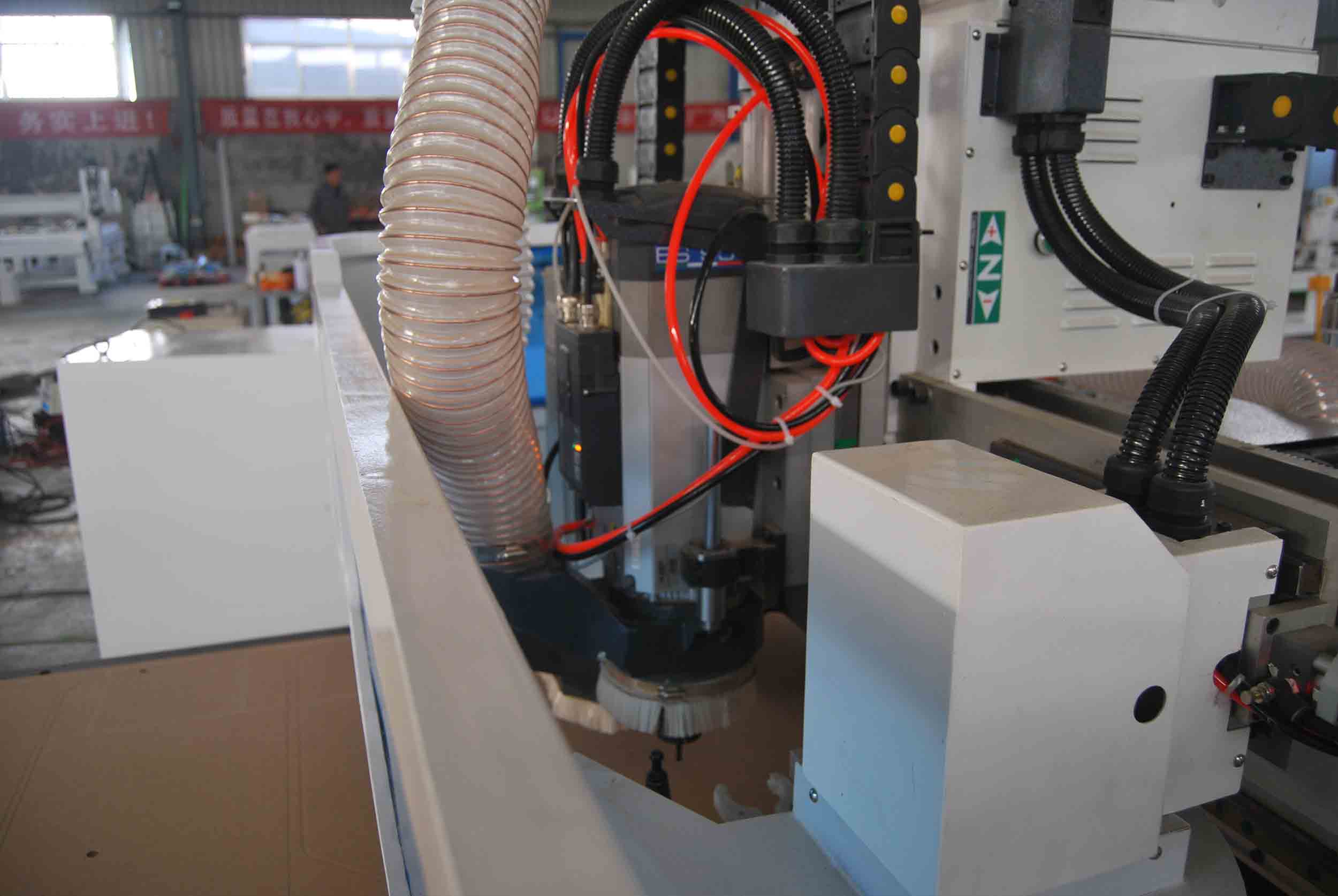

Leading brand components such as Italian HSD spindle (automatic tool change), Japanese Yaskawa servo motors, Taiwan Syntec (italian Osai)controller, Apex reducer and transmissions ensure high efficiently.
Double layer vacuum table can hold small pieces for excellent cutting, realizes all kinds of customaries cabinet.
Parmeter | RCA1530 |
X,Y,Z,A,C Traveling | 1220*2440*150mm(4’×8’) |
Table | Double Layer Vacuum Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 55000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 9.0KW |
Spindle Speed | 0-24000RPM |
Driving System | Yaskawa Servo Motors |
Working Voltage | AC380v,50/60Hz,3Ph |
Command Language | G Code |
Operating System | Systec Control |
Software | CV,AUTO Nesting,Spazio 3D, |
Gross Weight | 4500KG |
Options | Vacuum pump |
