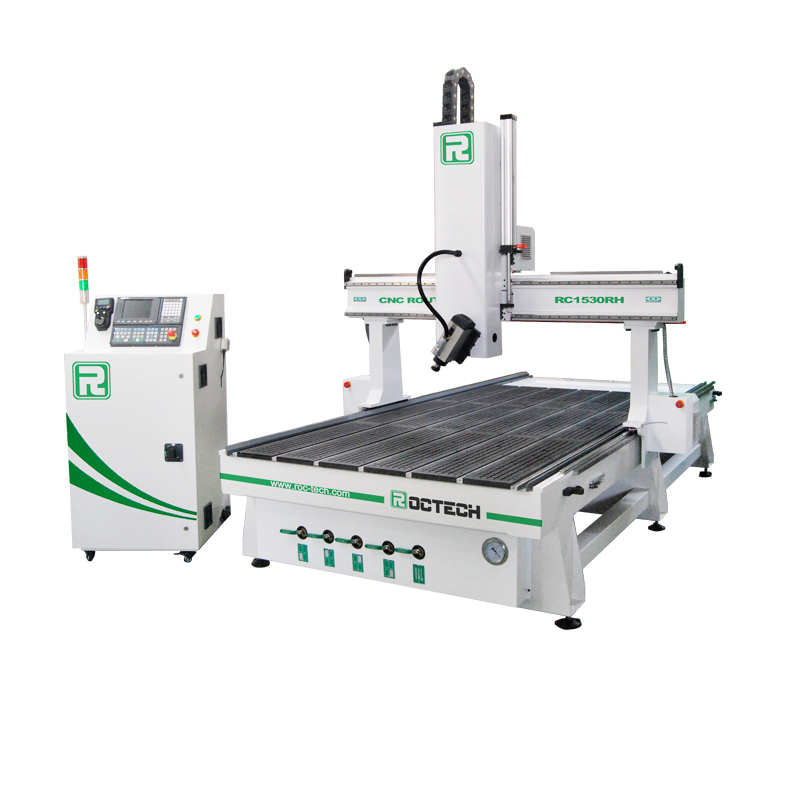

4-Axis CNC Router 1530RH
4-Axis CNC Router RC1530RH can be used for side milling, drilling, cutting, grooving, ideal for machining different surface engraving, 4-Axis CNC Router RC1530RH suppliers and manufacturers have complete product details and prices.
Inquiry 4-Axis CNC Router 1530RH Price
Hotline0086 531-86085880
- Product Details

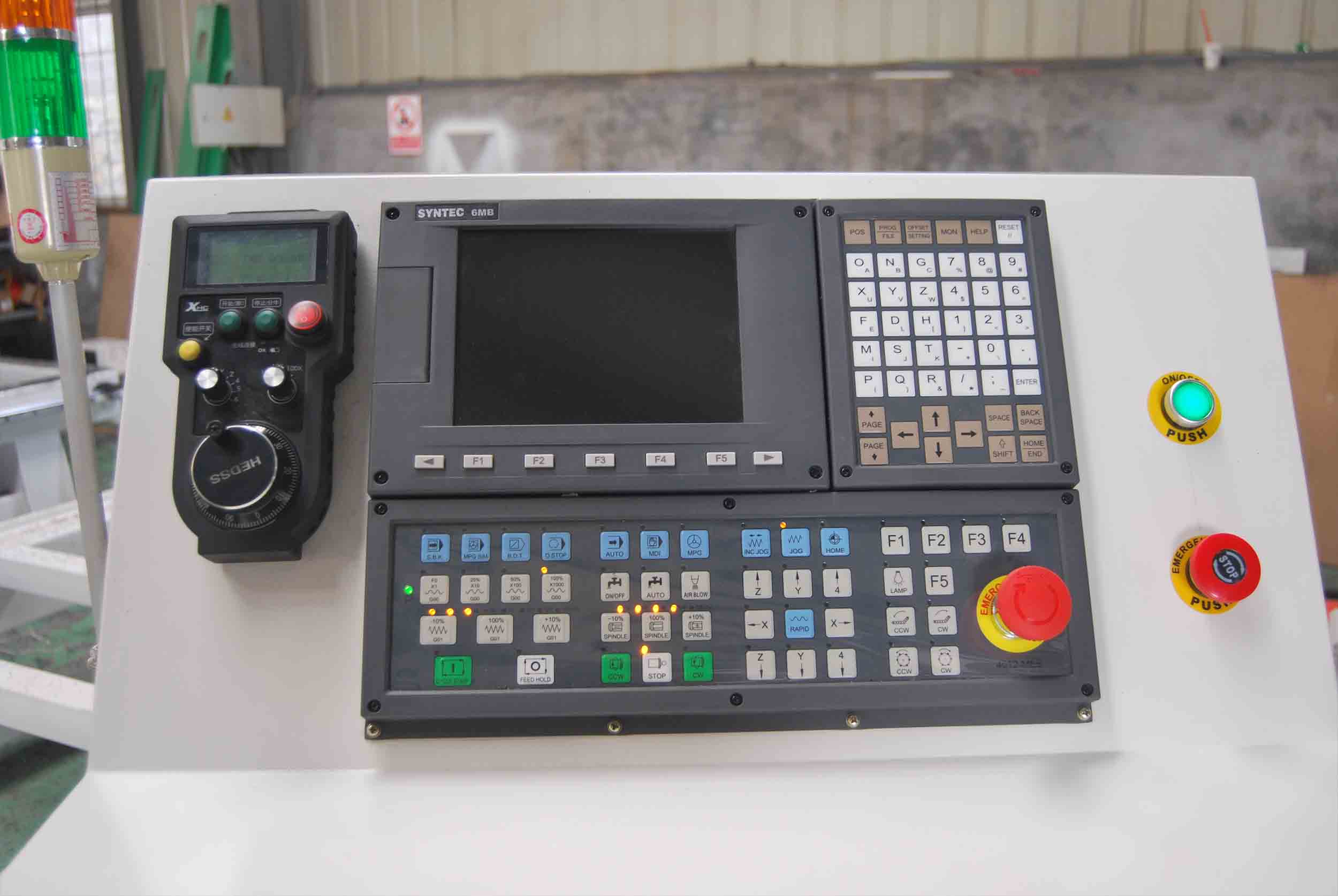

Syntec Controller, Taiwan Hiwin Square Rails, Yaskawa Servo Motor and Driver, Italian HSD Air cooling ATC spindle.

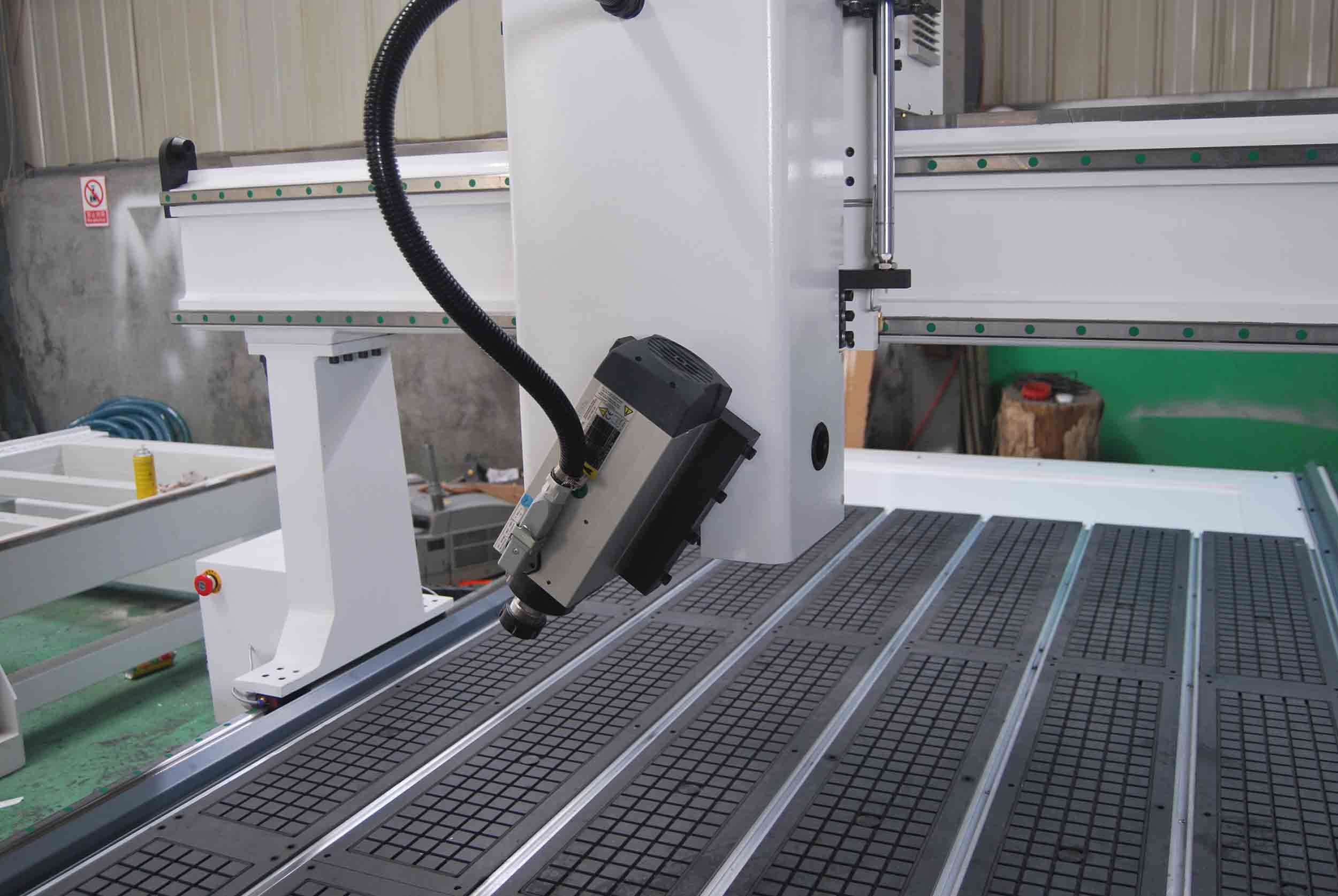

The spindle(B axis) can rotate +/- 90 degree, for side milling, drilling, cutting, lock slot, very suitable for processing of on different surface carving.
Considering to the costumer different sizes required, we can provide RC1325RH-ATC, RC2030RH-ATC, RC2040RH-ATC etc.
Cabinet processing: insulation, plastic and chemical, PCB, ABS, PP, PE and other carbon mixture.
Decoration industry: Acrylic, PVC, MDF, plastic and copper and aluminum and other soft metal flat engraving and milling.
Technical Parameter of 4 Axis CNC Router RC1530RH
Parmeter | RC1530RH |
X,Y,Z,A,C Traveling | 1500*3000*450mm*±90degree |
Table | Vacuum and T-slot Combined Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 35000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 4.5KW |
Spindle Speed | 0-18000RPM |
Driving System | Ysakawa Servo Motors |
Working Voltage | AC380v,50/60Hz，3Ph |
Command Language | G Code |
Operating System | Syntec Control |
Software | UG，PowerMill,Artcam,Type 3 |
Gross Weight | 2450KG |
Options | Vacuum pump |
