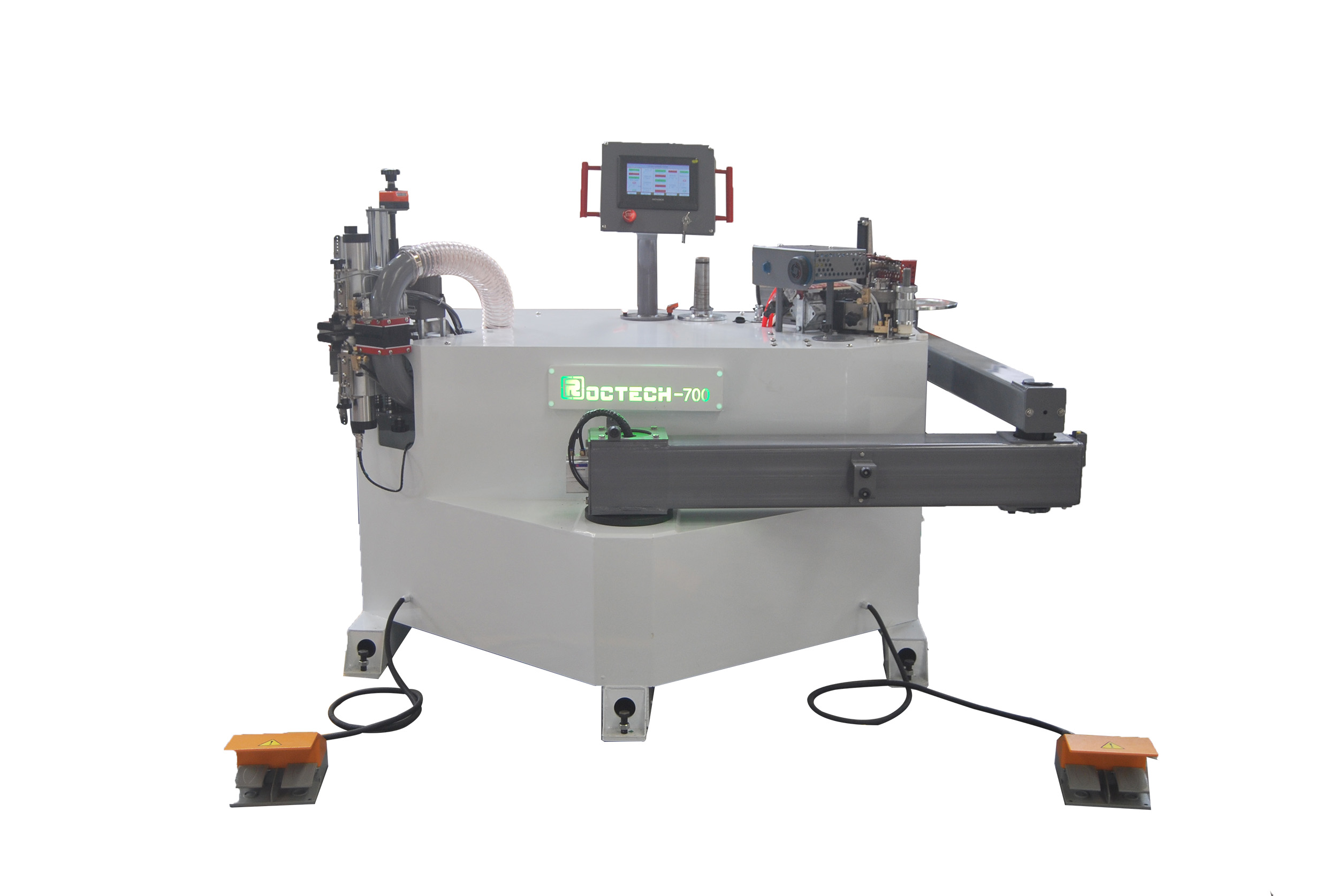

Curve Edge Banding Machine KN-700
For more Curve edge banding machine KN-700 product specifications and operationa......
Roctech® CNC router machinery
Curve Edge Banding Machine KN-700
For more Curve edge banding machine KN-700 product specifications and operational details, Curve edge banding machine KN-700 suppliers and manufacturers have full product details and prices.
Inquiry Curve Edge Banding Machine KN-700 Price
Hotline0086 531-86085880
- Product Details
The video about Curve Edge Banding Machine KN-700
Technical Parameter of Curve Edge Banding Machine KN-700
| mains input | 380V/three-phase four-wire/50Hz/60Hz |
| total power | 6KW |
| Air pressure | 0.6-0.8Mpa |
| Air storage capacity | 2L |
| Glue pot use temperature | 110℃-220℃ |
| Glue pot capacity | 2.6L |

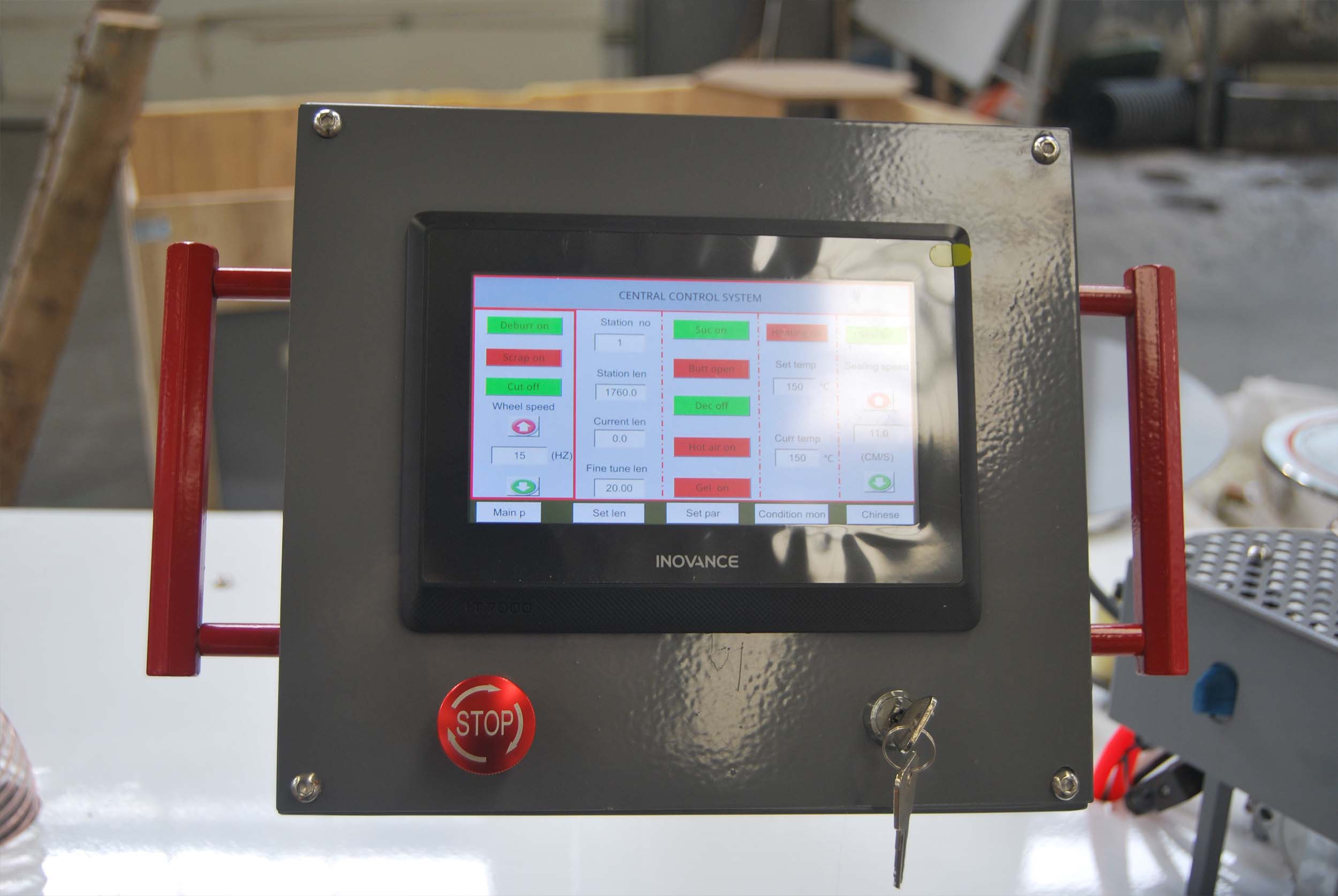

| touch screen | IT7000 Industrial touch screen |
| PLC | HIU-XP PLC |
| Sealing side machine | 220V 400W servo motor |
| Thickness of edge strip | 0.5-3mm |
| Width of banding edge | 14-70mm |
| Sealing side speed | 0-37 cm/s |
| package size | 1550*1400*1350mm |
